Trigger alarm with panic switch, function - GF80.50-P-3014PP

MODEL 203.0 /2 /7 with CODE (551) Anti-theft alarm system (ATA [EDW]) with CODE (763) Radio remote control with panic switch

Shown on model 203.0

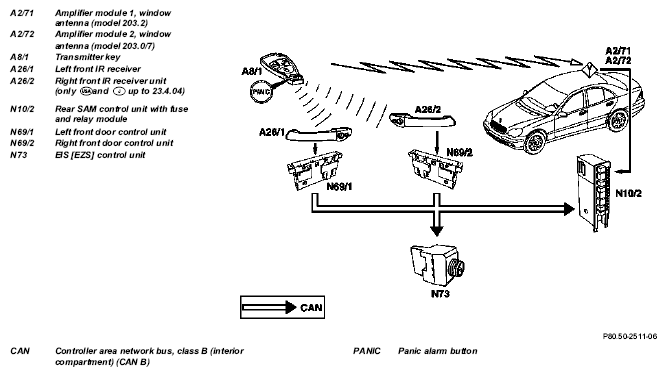

Fig 1: Identifying Trigger Alarm With Panic Switch, Function

Alarm actuation

Actuate panic alarm button (PANIC) on transmitter key (A8/1) for approx. 1 s.

The signal of the transmitter key (A8/1) is received on the vehicle and after the authorization code has been checked by the EIS control module (N73) it is relayed rear SAM control module with fuse and relay module (N10/2) via CAN-B (CAN). The rear SAM control module with fuse and relay module (N10/2) triggers a visual and acoustic alarm.

Alarm output

The alarm signal horn with additional battery outputs an acoustic alarm regardless of the ATA status.

Parallel to this, a visual alarm is output

The panic alarm has priority over the ATA alarm.

If both alarms are set off, the panic alarm is emitted.

Visual alarm

The alarm output is actuated by the rear SAM control module with fuse and relay module (N10/2). The type of alarm and alarm duration are stored in the rear SAM control module with fuse and relay module (N10/2).

Interior lights actuation

The interior lights is switched by the overhead control panel control module, without dimming, for the duration of the visual alarm.

Exterior lights actuation

The visual alarm is accomplished when the

left taillamp and parking lamp and the right taillamp and parking lamp are actuated by the front SAM control module with fuse and relay module (N10/2),
left front fog lamp and right front fog lamp are actuated by the front SAM control module with fuse and relay module

for the duration of a visual alarm.

Acoustic alarm

The acoustic alarm is output by the alarm signal horn with additional battery (H3/1).

Alarm duration

The alarm duration of the visual alarm is approx. 180 s.

The alarm duration of the acoustic alarm is approx. 185 s

Terminate alarm

Momentarily actuate panic alarm button (PANIC) on transmitter key (A8/1).

The panic alarm is terminated when the EIS control unit (N73) recognizes a valid transmitter key (A8/1).

The panic alarm function and the duration of the alarm can be programmed via the STAR DIAGNOSIS.

	Rear SAM control unit with fuse and relay module, location/task/design/function		GF54.21-P-4115PP
	Front driver side door control unit, location/task/design/function		GF72.29-P-4105PP
	Front passenger door control unit, location/task/design/function		GF72.29-P-4106PP
	Transmitter key, task/design/function		GF80.57-P-4101PP
	Electronic ignition switch control unit, location/task/design/function		GF80.57-P-4102PP
