Inclination sensor, location/task/design/function - GF80.50-P-4105PP
MODEL 203.0 /2 /7 up to 31.5.06 with CODE (551) Anti-theft alarm system (ATA [EDW])
MODEL 203.0 /2 /7 as of 1.6.06 with CODE (551) Anti-theft alarm system (ATA [EDW]) except CODE (494) USA version except CODE (498) Japanese version
Shown on model 203.0

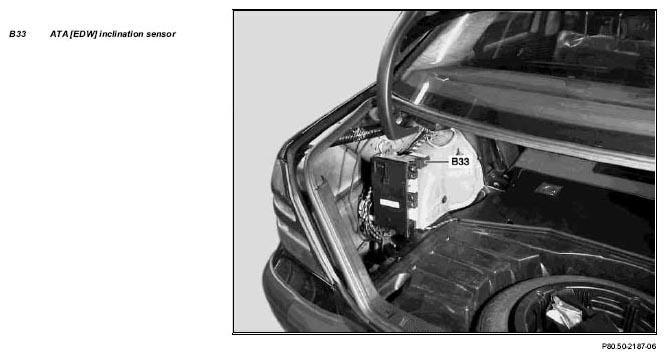

| Inclination sensor, location | The ATA inclination sensor (B33) is located in the trunk on the left wheelhouse. | ||
| Inclination sensor, task | Monitors positional changes of the vehicle. | ||
| Inclination sensor, design | The ATA inclination sensor (B33) contains electrodes in an electrolyte (electrically conductive fluid). | ||
| Inclination sensor, function | GF80.50-P-4105-01PP |
