Glass breakage sensor, location/task/design/function - GF80.50-P-4107PS
MODEL 203.2 with CODE (551a) Anti-theft alarm system (ATA) with CODE (882b) Interior motion sensor (only with anti-theft alarm system)

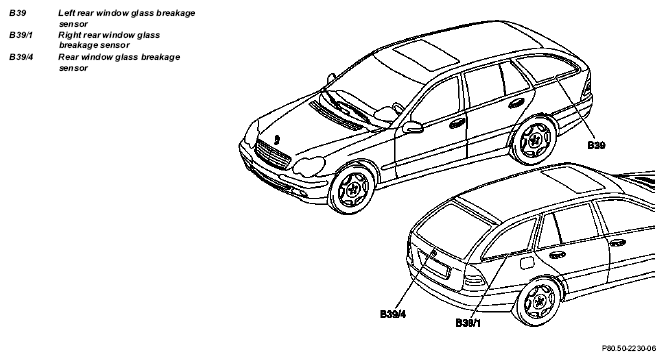

| Glass breakage sensor, location | The left rear window glass breakage sensor (B39) and right rear window glass breakage sensor (B39/1) are located in the bottom area of the rear side window The rear window glass breakage sensor (B39/4) is located in the bottom are of the rear window |
||
| Glass breakage sensor, task | Detects breakage of rear side window and rear window from line discontinuity | ||
| Glass breakage sensor, design | A conducting loop is vacuum-metalized to the inside of the side window and the rear widow | ||
| Glass breakage sensor, function | A line discontinuity is evaluated by the interior motion sensor transmitter and receiver and transmitted to the rear SAM control module with fuse and relay module via the controller area network bus class B (interior compartment) (CAN B). |
