Anti-theft alarm system (ATA [EDW]), location of components - GF80.50-P-0001-02PP

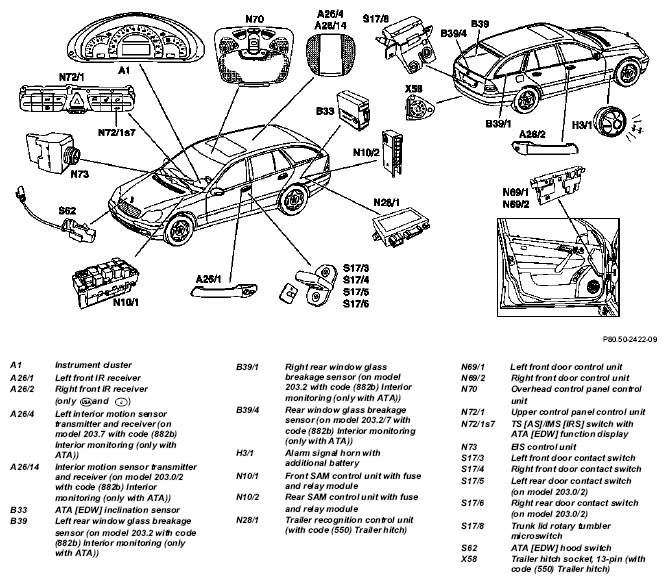

Fig 1: Identifying Anti-Theft Alarm System (ATA) Components Location - Shown On Model 203.2

G04735406

Shown model 203.2
