Alarm signal horn, location/task/design/function - GF80.50-P-4110Q
MODEL 203.0 /2 /7, 209.3 /4 with CODE (551a) Anti-theft alarm system (ATA)
Shown on model 209.3

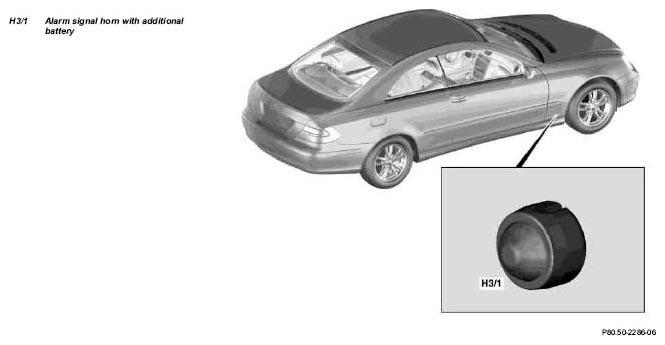

| Alarm signal horn, location | The alarm signal horn with additional battery (H3/1) is located in the left front wheelhouse. | ||
| Alarm signal horn, task | The alarm signal horn with additional battery (H3/1) outputs acoustic signals for the anti-theft alarm system (ATA). | ||
| Alarm signal horn, design | The alarm signal horn with additional battery (H3/1) consists of:
|
||
| Alarm signal horn, function | GF80.50-P-4110-04Q |
