Preparing side roof paneling - AR65.10-P-1020-02P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |

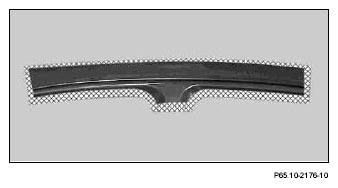

- Adapt new part to repaired area.
- Cut new part to size with body saw.
- Grind connection surfaces down to bare metal in shaded areas.
- Grind spot welding flanges down to bare metal on both sides
- Coat insides of spot welding flanges with zinc dust paint.
