Removing and installing rear dome lamp - AR82.20-P-0113P

MODEL 203

Location of components

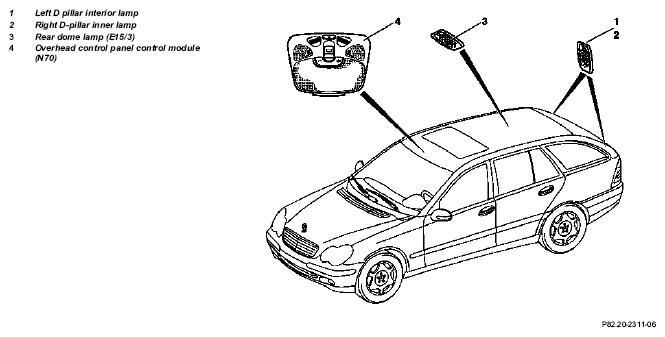

Fig 1: Identifying Rear Dome Lamp Remove/Install Components

	Removing, installing
1	Unclip rear dome lamp (E15/3) (3)		Fig 2
2	Disconnect couplings
3	Install in the reverse order

Special tool

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
