Removing and installing loudspeaker in front doors - AR82.62-P-7845P
MODEL 203

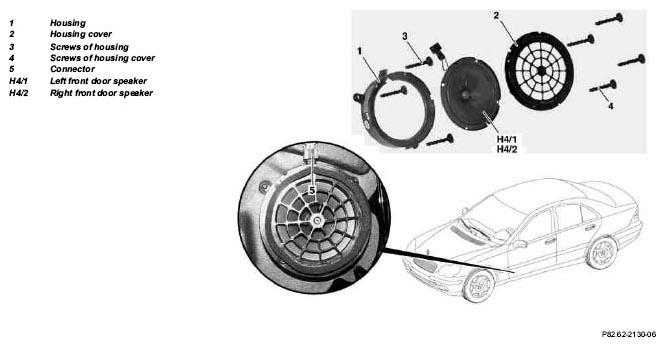

Shown on model 203.0

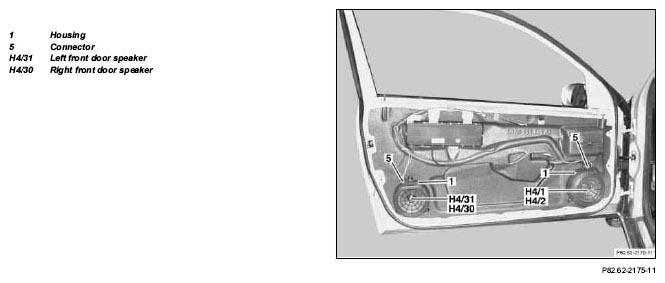

Shown on model 203.7
| Removing, installing | |||
|---|---|---|---|
| 1 | Remove door liner from front door | AR72.10-P-1000P | |
| 2 | Disconnect connector (5) | ||
| 3 | Remove screws of housing (3) | Figure | |
| 4 | Remove housing (1) | ||
| 5 | Remove screws of housing cover (4) | Figure | |
| 6 | Take off housing cover (2) | ||
| 7 | Unclip speaker in front left door (H4/1), speaker in front right door (H4/2) and take out of housing (1) | ||
| 8 | Unclip speaker in front left door (H4/31), speaker in front right door (H4/30) and take out of housing (1) | Model 203.7 |
|
| 9 | Disconnect front door loudspeaker connectors | ||
| 10 | Install in the reverse order | ||
| 11 | Perform function check |
