Removing and installing center high-mounted stop lamp - AR82.10-P-5375PB

MODEL 203.7

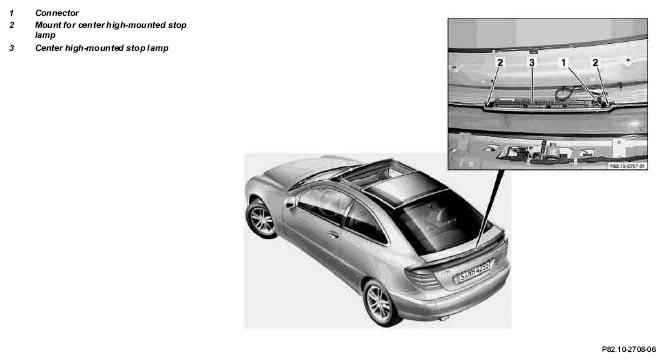

Fig 1: Identifying Center High-Mounted Stop Lamp Remove/Install Components - Model 203.7

	Removing, installing
1	Remove, install upper tailgate paneling		AR68.30-P-1070PB
2	Disconnect connector from center high-mounted stop lamp
3	Loosen mount for center high-mounted stop lamp (2)	Unscrew screw from spreading rivet
4	Remove center high-mounted stop lamp (3)
5	Install in the reverse order
