Remove/install transmitter/receiver - AR82.70-P-8911DD

MODEL 203.0 /2 /7 with CODE (853) MB standard telephone

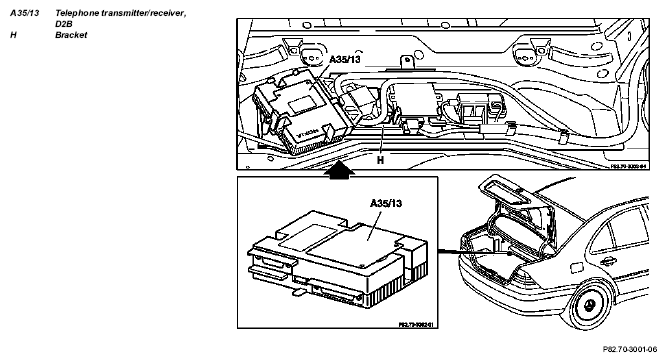

Fig 1: Identifying Telephone Transmitter/Receiver D2B And Bracket - Model 203.0 /2 /7 With Code (853)

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove floor paneling in trunk
2	Remove cover behind rear seat	Unscrew the 2 bolts of the anchoring lugs.
3	Disconnect coupling from telephone transmitter/ receiver, D2B (A35/13)	Unlock coupling. Do not kink or stretch fiber optic cable.
4	Unclip telephone transmitter/receiver, D2B (A35/13)
5	Remove D2B telephone transmitter/receiver (A35/13)
6	Install in the reverse order
