Remove/install daylight sensor - AR82.10-P-2400P

MODEL 203

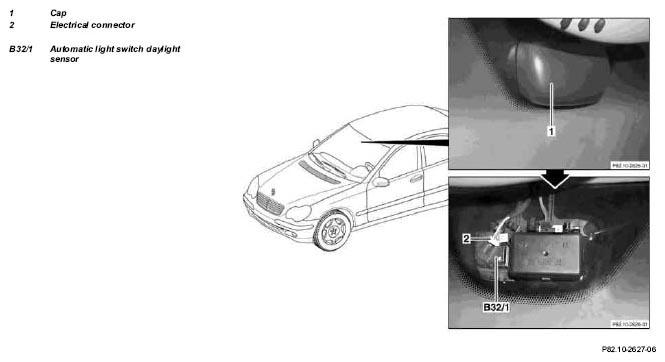

Fig 1: Identifying Daylight Sensor Remove/Install Components - Model 203

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1.1	Transfer basic data from automatic light switch daylight sensor (B32/1) to STAR DIAGNOSIS	When replacing automatic light switch daylight sensor (B32/1).
		Installation:  Transfer buffered basic data to new automatic light switch daylight sensor (B32/1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Remove cover (1)
3	Disconnect electrical connector (2) from automatic light switch daylight sensor (B32/1)
4	Unclip automatic light switch daylight sensor (B32/1)
5	Remove automatic light switch daylight sensor (B32/1)	Lens of automatic light switch daylight sensor (B32/1) is bonded to windshield. Do not replace.
6	Install in the reverse order

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
