Adjust wiper arms - AR82.30-P-6100-01T
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number |
Designation |
Model 140 |
Model 170 |
Model 171 |
| BE82.30-P-1003-01E |
Angle of incidence of wiper arm on driver-side in parked position |
∠ ° |
-3.0...-7.0 |
2.0...6.0 |
2.0...6.0 |
| BE82.30-P-1004-01E |
Angle of incidence of wiper arm on front passenger side in parked position |
∠ ° |
-3.0...-7.0 |
2.0...6.0 |
4.0...8.0 |
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number |
Designation |
Model 203 |
Model 211 |
Model 215 |
| BE82.30-P-1003-01E |
Angle of incidence of wiper arm on driver-side in parked position |
∠ ° |
1.5...5.5 |
2.5...6.5 |
2.0...6.0 |
| BE82.30-P-1004-01E |
Angle of incidence of wiper arm on front passenger side in parked position |
∠ ° |
2.5...6.5 |
2.5...6.5 |
2.0...6.0 |
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number |
Designation |
Model 220 |
Model 230 |
Model 240 |
| BE82.30-P-1003-01E |
Angle of incidence of wiper arm on driver-side in parked position |
∠ ° |
2,0...6,0 |
2,0...6,0 |
3,0...5,0 |
| BE82.30-P-1004-01E |
Angle of incidence of wiper arm on front passenger side in parked position |
∠ ° |
2,0...6,0 |
2,0...6,0 |
3,0...5,0 |
The angle of incidence of the driver-side wiper arm and the passenger-side wiper arm is always adjusted in the parked position and is only carried out if the test values are out of the tolerance range in the reverse or parked position. The driver-side wiper arm or the passenger-side wiper arm is distorted by at least the value of the tolerance deviation in reverse position during this procedure.

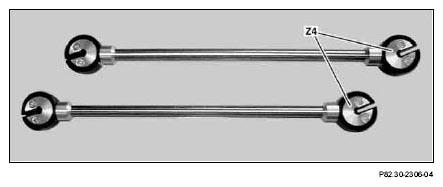

Use adjuster lever (Z4) from
adjustment tool set.
Change relevant sign of test and adjustment values for right-hand drive vehicles.

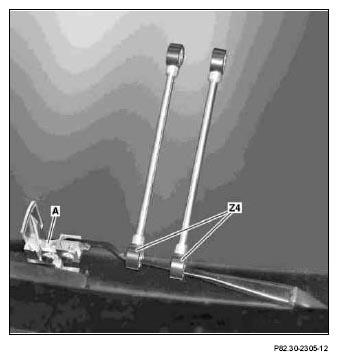

Shown on model 203, driver-side wiper arm in parked position
-
Fit angle measuring device (A) with
adapter to wiper arm to be adjusted.
- Lower wiper arm until all three contact points of the
angle measuring device (A) foot are lying against the windshield.
-
Put adjuster lever (Z4) as far apart as possible on this wiper arm.
The wiper arm is distorted with the aid of the
adjuster lever (Z4) which was positioned
close to the angle measuring device. The second
adjuster lever (Z4) is used as a counterholder.
-
Press the adjuster lever (Z4) into the required direction until the wiper arm is at least distorted by the value of the tolerance deviation in reverse position.
-
Remove adjuster lever (Z4) from wiper arm.
Shown on model 203, driver-side wiper arm in parked position
- Read off angle of incidence of adjusted wiper arm from scale of
angle measuring device (A), note down and compare with test and adjustment values.
-
Remove angle measuring device (A) with
adapter from adjusted wiper arm.
