Satellite radio (SDAR), networking of components - GF82.60-P-0006-01PO

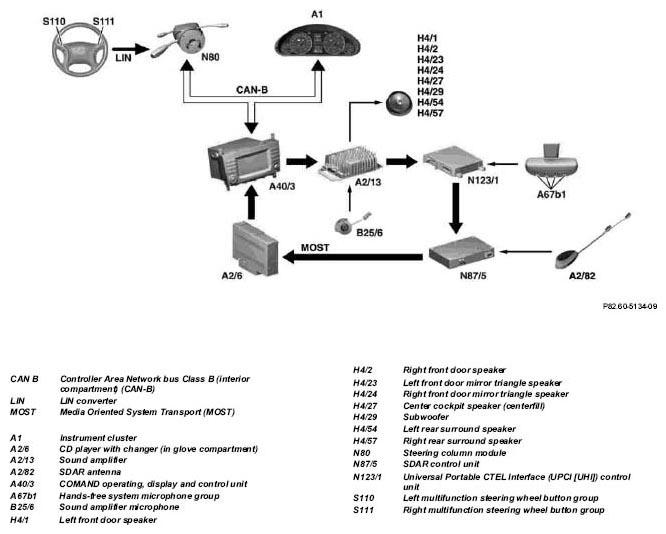

Fig 1: Identifying Satellite Radio (SDAR) Networking Components

Shown with code (530) COMAND APS USA (with navigation system), with CODE (810) Sound system, with code (819) CD changer (6 CDs)
