Retrofitting wiring harness for heated windshield washer - AN82.35-P-0001-02PA

NOTES The heated windshield washer wiring harness is delivered with tie-outs for air conditioning system and headlamp cleaning system. These tie-outs are not routed to the affected components. Tie back and insulate.

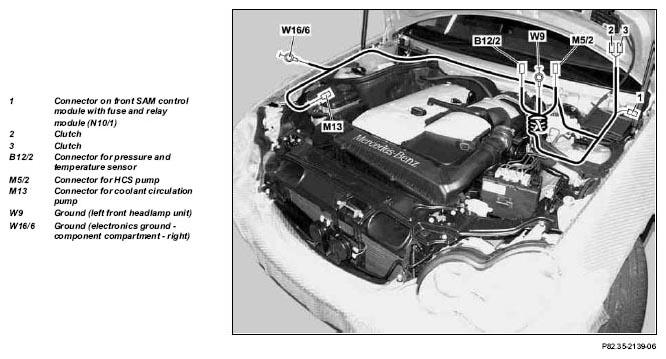

Fig 1: Identifying Heated Windshield Washer Wiring Harness (1 Of 2)
G04735954

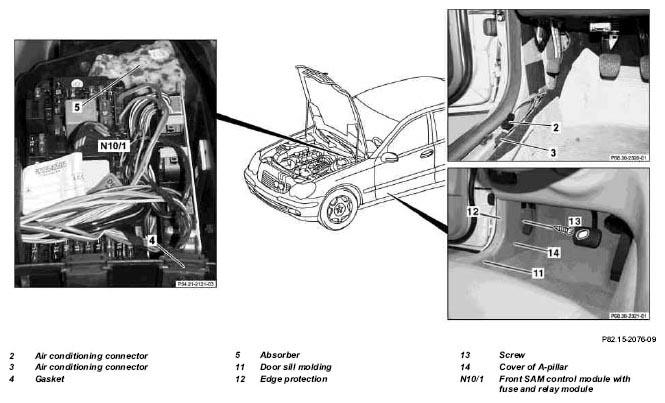

Fig 2: Identifying Heated Windshield Washer Wiring Harness (2 Of 2)
G04735955
  1. Remove seal (4)
  2. Remove absorber (5).
  3. Remove door sill molding (11)
  4. Remove edge guard (12) in area of A-pillar paneling
  5. Unscrew bolt (13)

    IMPORTANT Unclip cap from A-pillar cover (14).

  6. Unclip A-pillar cover (14) and remove
  7. Open wiring duct on entrance panel.
  8. Pull tie-outs with connectors (2, 3) into passenger compartment through wiring duct below absorber
  9. Route connectors (2, 3) into wiring duct.

    NOTES Insulate connectors. Route leads without kinking or chafing and tie with cable straps.

  10. Insert connector (1).

    IMPORTANT Plug location M15.

  11. Install seal (4) on wiring harness in front of SAM control module with fuse and relay module (N10/1).
  12. Insulate tie-outs for pressure and temperature sensor (B12/2), HCS pump (M5/2) and ground (left headlamp unit) (W9), tie and route to area below master brake cylinder.

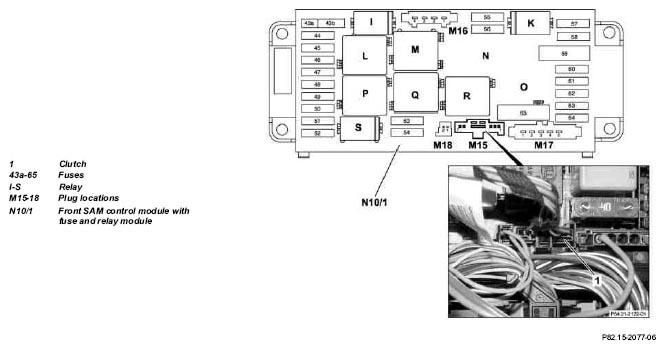

    Fig 3: Identifying Front SAM Control Module With Fuse And Relay Module
    G04735956

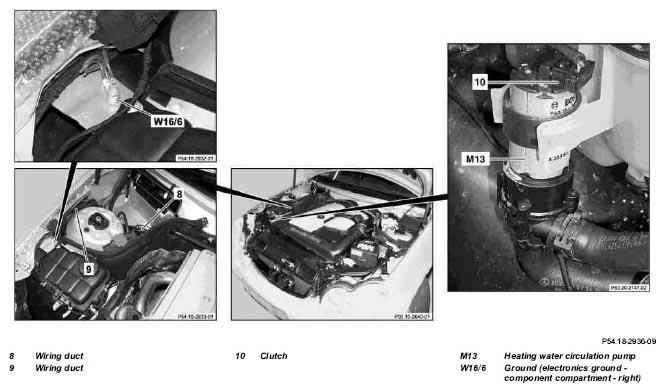

    Fig 4: Identifying Wiring Duct, Clutch And Heating Water Circulation Pump
    G04735957
  13. Open wiring duct (8)

    IMPORTANT Wiring duct below battery console.

  14. Open wiring duct (9).
  15. Route wiring harness with tie-outs for electronic ground (right of component compartment (W16/6) and coolant circulation pump (M13) connector to wiring duct (8) below master brake cylinder on firewall.
  16. Route tie-outs through wiring duct (9).
  17. Screw on electronic ground, right of component compartment (W16/6).
  18. Connect connector (10) to coolant circulation pump (M13).
  19. Connect tie-outs to present wiring harness.
  20. Reassemble in opposite order.
