Retrofitting CD changer in stowage compartment - AN82.64-P-0001-02P

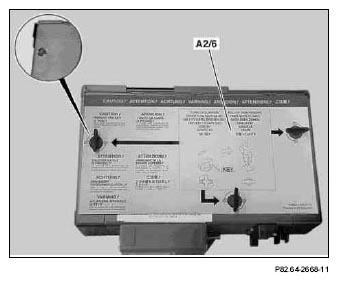

Remove the three transport securing devices on the underside of the CD player with changer (in the glove compartment) (A2/6) as per the instructions.
Seal the openings in the transport securing devices with the stickers enclosed (see enlarged section).

Fig 1: Identifying CD Player With Changer

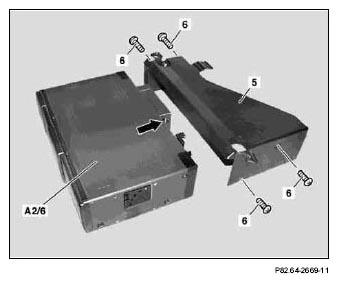

Slide the CD player with changer (in the glove compartment) (A2/6) into the bracket (5) (see arrow) and tighten securely with four M4_6 screws (6).

Fig 2: Identifying CD Player With Changer And Bracket

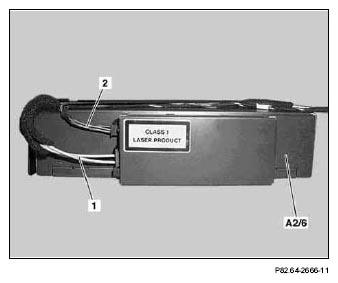

Connect wiring harness for Most fiber optical cable (1) and wiring harness for voltage supply (2) to CD player with changer (in glove compartment) (A2/6).

Fig 3: Identifying CD Player With Charger And Fiber Optical Cable

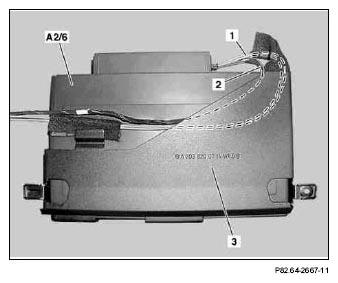

Route wiring harness for Most fiber optical cable (1) and wiring harness for voltage supply (2) between CD player with changer (in glove compartment) (A2/6) and bracket (3) as shown in the picture.

Fig 4: Identifying CD Player With Charger, Fiber Optical Cable And Wiring Harness

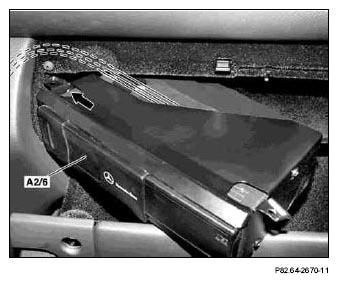

Slide CD player with changer (in glove compartment) (A2/6) with fastening shackle on the left side (see arrow) into the existing fixing hole in the glove compartment.

Fig 5: Identifying CD Player With Changer And Fastening Shackle

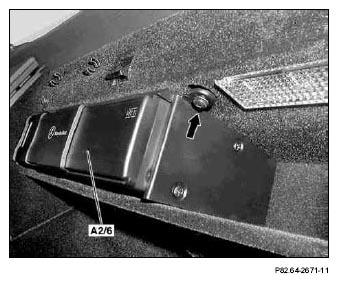

Screw on the CD player with changer (in glove compartment) (A2/6) using a M5x16 sheet metal screw (see arrow).

Fig 6: Identifying CD Player With Changer And Sheet Metal Screw
