Retrofit control unit and interface - AZ82.70-P-0008-01PPR

Position the ICANI box (2) and the hands-free system interface box (3) on the front passenger footrest (9) as shown in the illustration, mark the locations of the mounting holes and then drill ø 2 mm holes there.
Attach the control units to the front passenger foot plate (9) with commercially available sheet metal screws (10).

Fig 1: Identifying ICANI Box, Hands-Free System Interface Box And Front Passenger Footrest
Route connector (8) from telephone console to hands-free system interface box (3) and connect to hands-free system interface box (3) as shown in figure.
The plugs are designed so they will only fit in the correct socket.

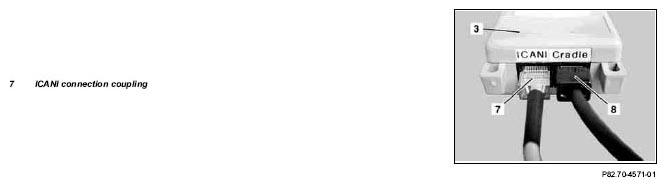

Fig 2: Identifying Connector And Hands-Free System Interface Box
