Remove/install overhead control panel control unit - AR54.21-P-1262P
MODELS 203 up to 23.4.04
Illustrated on Model 203.0

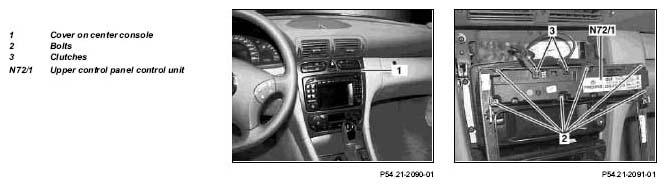

Fig 1: Identifying Overhead Control Panel Control Unit Remove/Install Components - Illustrated On Model 203.0
| Remove/Install | |||
| 1 | Remove cover (1) on center console | AR68.20-P-2350P | |
| 2 | Detach connectors (3) | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Remove upper control panel control unit (N72/1) | ||
| 5 | Install in the reverse order |
