Removing bottom rear window - AR67.20-P-3600-01PB

Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Fig 2: Identifying Cutting Blade (124 589 03 63 00)

Fig 3: Identifying Cutting Blade (124 589 12 63 00)

Fig 4: Identifying Cutting Blade (124 589 40 63 00)

1. Mark separation lines (A, B, C) at bottom window of tailgate

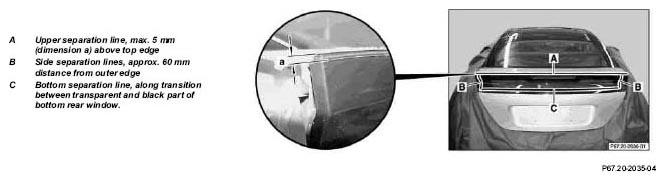

   Fig 5: Identifying Upper Separation Line, Side Separation Lines & Bottom Separation Line (1 Of 2)


2. Saw bottom rear window along upper separation line (A) .
3. Saw bottom rear window along side (B) and bottom (C) separation line .
   Fig 6: Identifying Upper Separation Line, Side Separation Lines & Bottom Separation Line (2 Of 2)


4. Separate glue bead at top edge from outside with blade
5. Separate glue bead on stay below center high-mounted stop lamp (arrow) with blade from inside.

   Do not damage stay.

   Fig 7: Separating Glue Bead At Top Edge From Outside With Blade


   Fig 8: Locating Glue Bead On Stay Below Center High-Mounted Stop Lamp


6. Separate glue bead at side from outside with blade
7. Separate glue bead along bottom edge from outside with blade .
   Fig 9: Separating Glue Bead At Side From Outside With Blade


   Fig 10: Separating Glue Bead Along Bottom Edge From Outside With Blade
