Removing and installing rear side window molding - AR67.30-P-4010PB

MODEL 203.7

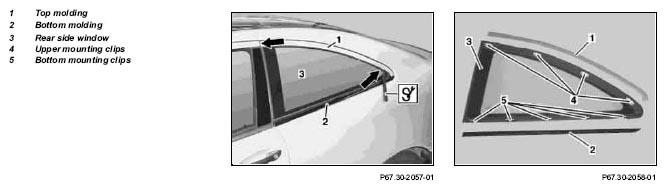

Fig 1: Identifying Rear Side Window Molding Remove/Install Components - Model 203.7

	Removal
1	Unclip top molding (1)	Assembly wedge Start at front at the first three mounting clips (4)	Figure
2	Move top molding (1) toward front	This loosens the top molding (1) on the last mounting clip.
3	Remove top molding (1)
4	Unclip bottom molding (2)	Assembly wedge	Figure
5	Remove bottom molding (2)
	Installing
6	Check mounting clips (4) and (5)	Replace damaged mounting clips (4) and (5).
7	Align top molding (1) at mounting clips (4) and press on	Use lubricant	*BR00.45-Z-1010-06A
8	Align bottom molding (2) at mounting clips (5) and press on
9	Check molding (1) and (2) position, correct if necessary.

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
