Glaze rear side window - AR67.30-P-4000-08PB

WORKSHOP EQUIPMENT

WE58.40-Z-1029-11A

Cup suction tool for window removal and installation

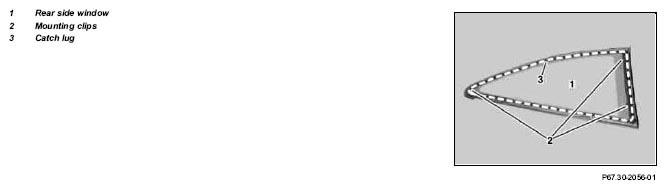

Fig 1: Identifying Rear Side Window, Mounting Clips And Catch Lug

Position cup suction tool on rear side window (1).
Align rear side window (1) on the basis of the clip retainers (2) and position.
Press on rear side window (1) so far until the clip retainers (2) and the catch lug (3) latch.

The hardening time (drive-away time), calculated rear side window (1), is approx. 1 hour.
