Cutting out window with cutting blade Risk of injury - AR67.20-P-3550-01PB

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and eye protection.

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Fig 2: Identifying Cutting Blade, Straight, Blade Length 35 mm (202 589 17 63 00)

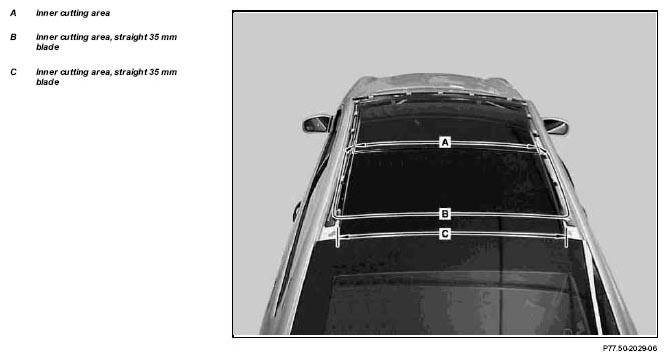

Fig 3: Identifying Inner Cutting Areas

1. Clamp blade into multicutter .
2. Moisten whetstone and sharpen both sides of blade with machine switched on.
3. Cut window out from inside in area "A".
4. Clamp blade into multicutter .
5. Moisten whetstone and sharpen both sides of blade with machine switched on.
6. Cut window out from inside in area "B".

   Start at sun blind. Also cut out cover

7. Cut window out from outside in area "C".

   Do not damage vulcanized seal on rear window. Move multicutter along window as close as possible.
