Apply glue onto the rear side window - AR67.30-P-4000-07PB
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-20A | Electric cartridge gun |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1015-02A | Repair kit | A 220 670 00 93 |

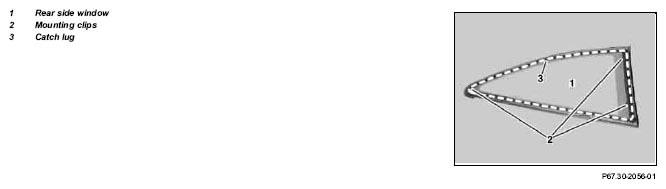

- Route nozzle along adhesive surface of rear side window (1) and thereby apply glue
Position rear side window (1) within 5 minutes before adhesive force of glue starts to decrease.
Completely press out glue not required following application (disposal). The height of the glue bead should be approx. 13 mm.
