Apply glue - AR67.10-P-1000-08PC

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-20A	Electric cartridge gun

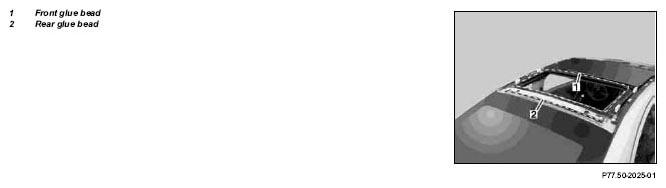

Fig 1: Identifying Front And Rear Glue Bead

Move nozzle on adhesive surface or glue residues along body flange and thereby apply glue.
Apply front glue bead (1) from inside of vehicle, rear glue bead (2) from outside.

Completely press out glue residues not required immediately following application (disposal).
