Aligning window in body opening - AR67.20-P-3550-04PB
MODIFICATION NOTES
| 22.1.01 | Value changed from 2.5 (±0.5) mm to 2 (±1) mm Value changed from 2 (+0.5) mm to 2 (±1) mm Value changed from 9.5 (±0.5) mm to 9 (±1) mm Value changed from 7.5 (±0.5) mm to 7 (±1) mm |
Value in BE77.20-P-1007-01A changed for model 203.7 | *BE77.20-P-1007-01A |
TEST AND ADJUSTMENT VALUES FOR SLIDING/POP-UP ROOF
| Number | Designation | Model 203.7 | ||
|---|---|---|---|---|
| BE77.20-P-1006-01A | Height adjustment glass roof, rear to rear window | Glass roof, rear, higher than rear window | mm | 0 (+2) |
| BE77.20-P-1007-01A | Gap dimensions | Wind deflector to sliding/pop-up roof | mm | 2 (±1) |
| Sliding/pop-up roof to glass roof, rear | mm | 2 (±1) | ||
| Glass roof, rear, to rear window | mm | 9 (±1) | ||
| Windshield to outer mounting clamp of trim strip | mm | 7 (±1) | ||

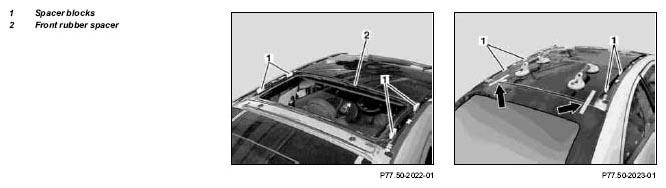

- Insert spacer blocks (1) into side retaining rails.
- Glue on front rubber spacers (2) in center.
Use rubber spacers with a height of 5 mm.
- Insert window into opening
- Check window height.
Pencil markings on spacer blocks (1) must still be visible.
- Adjust gaps.
- Glue on adhesive tapes, cut at window top edge and remove window
