Remove/install bulbs of headlamp unit - AR82.10-P-1201P
MODEL 203
Shown on model 203.0
| Remove/install | |||
|---|---|---|---|
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire due to highly flammable materials in the area of damaged xenon bulbs Risk of injury from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning from inhaling mercury vapors and from swallowing/skin contact with poisonous salts and mercury compounds |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure the work area is adequately ventilated. | AS82.10-Z-0001-01A | |
| 1 | Open engine hood and move to vertical position | AR88.40-P-1000P | |
| 2 | Unclip casing cover (2) and remove | ||
| 3 | Unclip casing cover (1) and remove | ||
| 4 | Turn base (3) and remove | ||
| 5 | Disconnect electrical connector from relevant bulb | ||
| 6 | Open relevant bulb retaining clips | ||

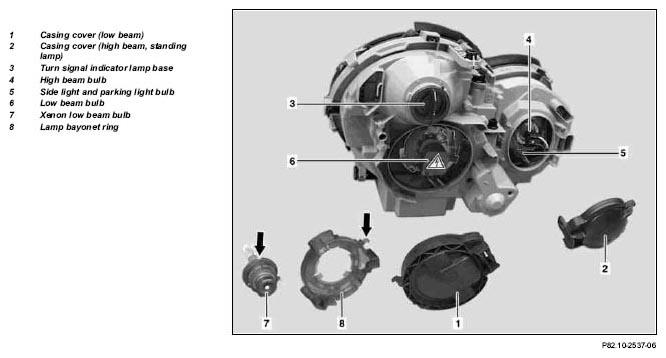

| 7 | Remove bulb | Ensure bulb is correctly installed. With code (612b) Xenon headlamp unit, recess (arrow) of Xenon low beam bulb (7) must point upwards. |
|
| 8 | Install in the reverse order | ||
| 9 | Perform a function test |
