Interior lighting (IBL), interlinkage of components - GF82.20-P-0002-02B

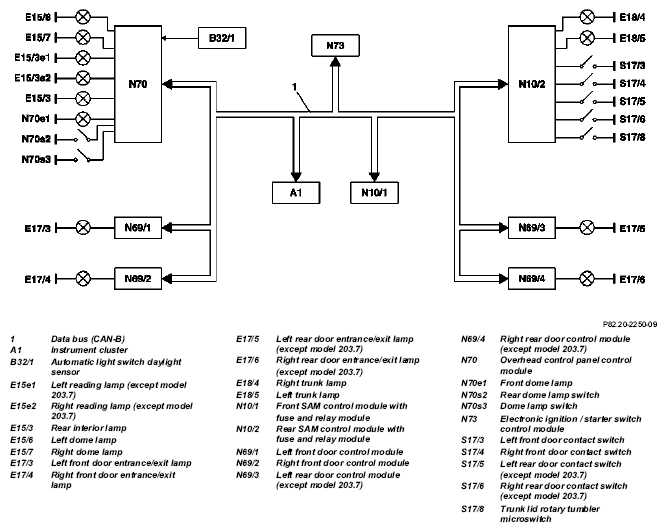

Fig 1: Identifying Interior Lighting (IBL) Interlinkage Components

G04735519
