Exterior lights, interlinkage of components - GF82.10-P-0003-01B

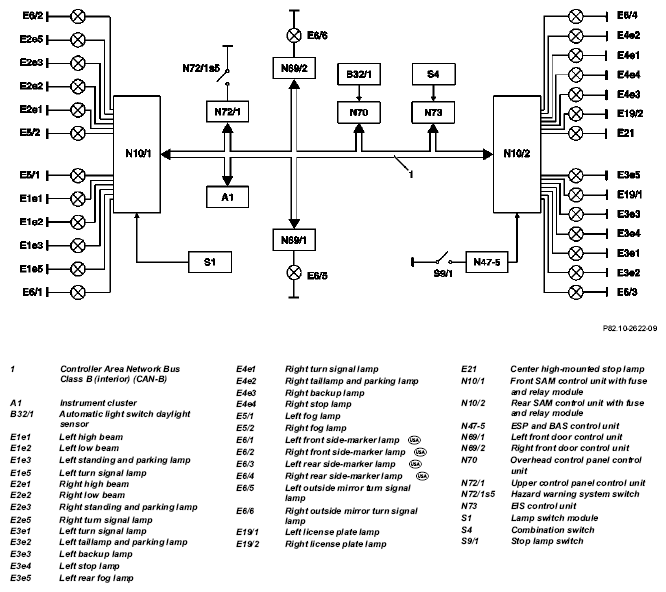

Fig 1: Identifying Exterior Lights Interlinkage Components - Except CODE (550) Trailer Device

except CODE (550) Trailer device

The stop lamp switch (S9/1) is not applicable as from 1.8.01.

Extension with code (550) trailer hitch

Fig 2: Identifying Exterior Lights Interlinkage Components - Extension With Code (550) Trailer Hitch
