Exterior lights, interlinkage of components - GF82.10-P-0003-01PM

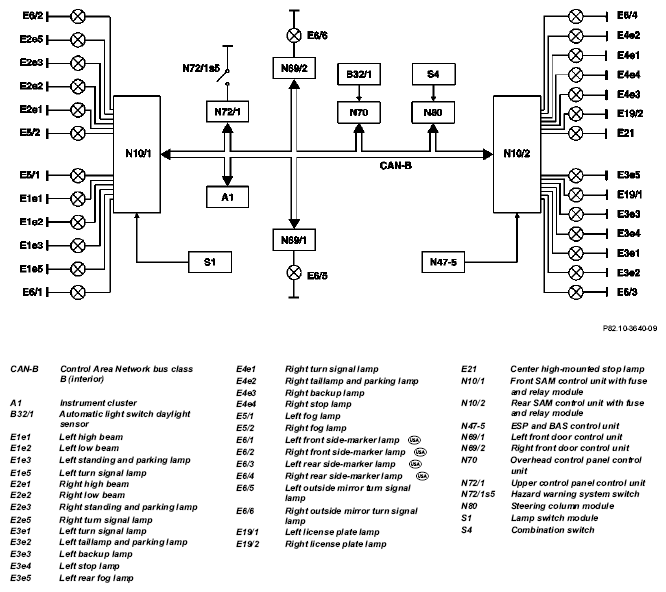

Fig 1: Identifying Exterior Lights Interlinkage Components - Except Code (550) Trailer Device
G04735484

except CODE (550) Trailer device

Extension with code (550) trailer hitch

Fig 2: Identifying Exterior Lights Interlinkage Components - Extension With Code (550) Trailer Hitch
G04735485
