Removing and installing loudspeakers in rear shelf - AR82.62-P-7836P
MODEL 203.0 with CODE (810) Sound system
MODEL 203.0## ## up to 582244
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove rear shelf | Models 203.0, 209.3 except electric roller shutter door for rear window code 540 | AR68.30-P-4580P |
| Models 203.0, 209.3 with electric roller shutter door for rear window code 540 | AR68.30-P-4580PA | ||

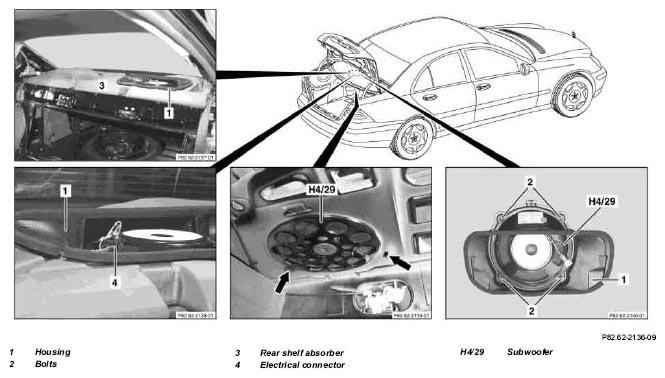

| 2 | Disconnect electrical connector (4) | ||
| 3 | Unclip subwoofer (H4/29) from the direction of the luggage compartment in direction of arrow | ||
| 4 | Remove subwoofer (H4/29) with housing (1) from rear shelf absorber (3) | ||
| 5 | Unscrew bolts (2) | ||
| 6 | Remove subwoofer (H4/29) from housing (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform function check |
