Removing and installing loudspeaker in rear doors - AR82.62-P-7874P

MODEL 203.0 /2 with CODE (810) sound system

Shown on model 203.0

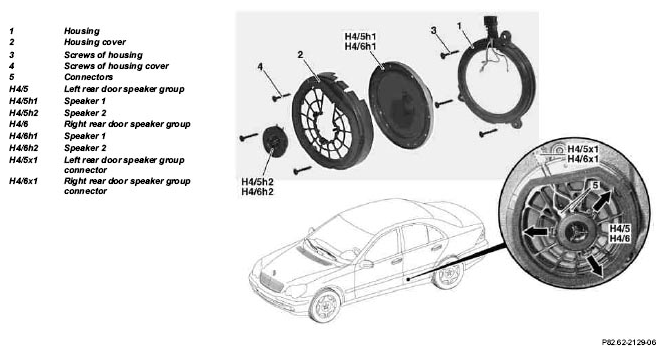

Fig 1: Identifying Loudspeaker In Rear Doors Remove/Install Components - Shown On Model 203.0

	Removal, installation
1	Remove door liner from rear door		AR72.12-P-1010P
2	Disconnect left rear door speaker group connector (H4/5x1) and right rear door speaker group connector (H4/6x1)
3	Remove screws of housing (3)		Figure
4	Take off housing (1) together with left rear door speaker group (H4/5); right rear door speaker group (H4/6)
5	Separate connectors (5) of speaker 2 (H4/5h2, H4/6h2)
6	Remove screws of housing cover (4)		Figure
7	Remove housing cover (2) with speaker 2 (H4/5h2, H4/6h2)
8	Unclip speaker 2 (H4/5h2, H4/6h2) and take out of housing cover (2)	Unclip in direction of arrow.
9	Separate connectors of speaker 1 (H4/5h1, H4/6h1)
10	Take speaker 1 (H4/5h1, H4/6h1) out of housing (1)	Pay attention to installation position.
11	Install in the reverse order
12	Perform function check

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
