Removing and installing loudspeaker in instrument panel - AR82.62-P-7833P

MODEL 203 with CODE (810) Sound system

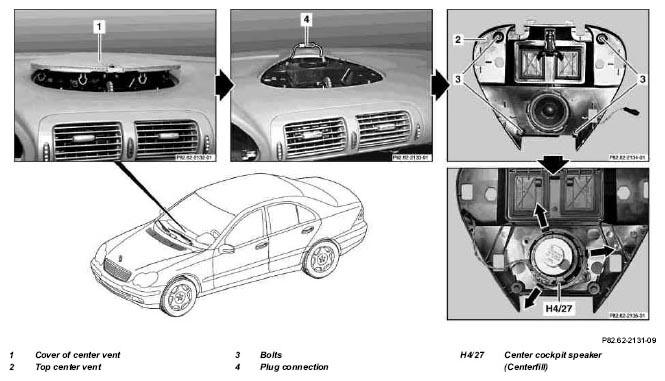

Fig 1: Identifying Loudspeaker In Instrument Panel Remove/Install Components - Model 203

	Removing, installing
1	Unclip and remove center nozzle cover (1)	Diagonally upwards towards the rear.
		Assembly wedge	Figure
2	Unscrew screws (3)	Torx bit set	Fig 3
3	Lift upper center nozzle (2) out of dashboard
4	Disconnect connector (4)
5	Unclip and remove center cockpit speaker (Centerfill) (H4/27)	Unclip in direction of arrow.
6	Install in the reverse order

Special tool

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
