Remove/install license plate lamps - AR82.10-P-5161P

MODEL 203, 209

Shown on model 203.0

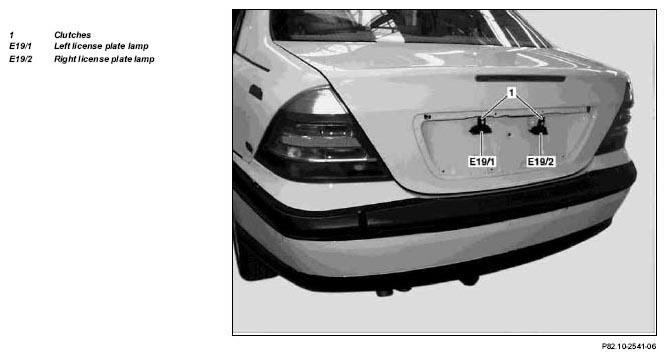

Fig 1: Identifying License Plate Lamps Remove/Install Components - Shown On Model 203.0

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1.1	Remove outer paneling at trunk lid	Model 203.0/2
		Model 209.3	AR88.50-P-5080Q
		Model 209.4	AR88.50-P-5080QA
1.2	Remove upper rear-end door paneling	Model 203.7	AR68.30-P-1070PB
2	Unclip left (E19/1) and right (E19/2) license plate lamps	Installation:  Ensure that gasket is in good condition and is properly seated.
3	Disconnect connectors (1)
4	Install in the reverse order
