Remove/install handset in stowage compartment armrest or stowage compartment - AR82.70-P-8915P
MODEL 203.0 /2 /7 with CODE (853) MB standard cellular telephone with CODE (352a) COMAND operating and display system
Illustrated on removed center console

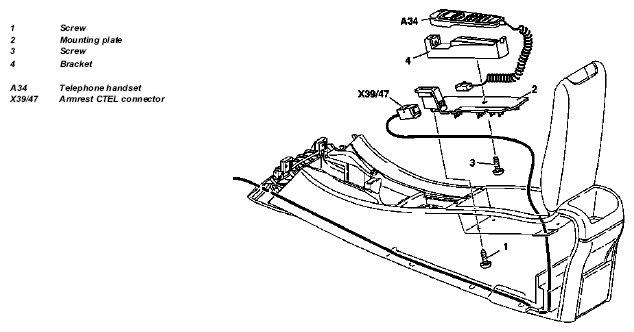

Fig 1: Identifying Telephone Handset And Armrest CTEL Connector - Illustrated On Removed Center Console
| Remove/Install | |||
|---|---|---|---|
| 1 | Disconnect telephone handset (A34) from armrest CTEL connector (X39/47) | ||
| 2 | Take telephone handset (A34) out of bracket (4) | ||
| 3 | Remove screws (1) | ||
| 4 | Remove mounting plate (2) | ||
| 5 | Unclip armrest CTEL connector (X39/47) | ||
| 6 | Remove screws (3) | ||
| 7 | Remove holder (4) | ||
| 8 | Install in the reverse order |
