Remove/install filler pipe of washer fluid reservoir - AR82.35-P-6007P

MODELS 203

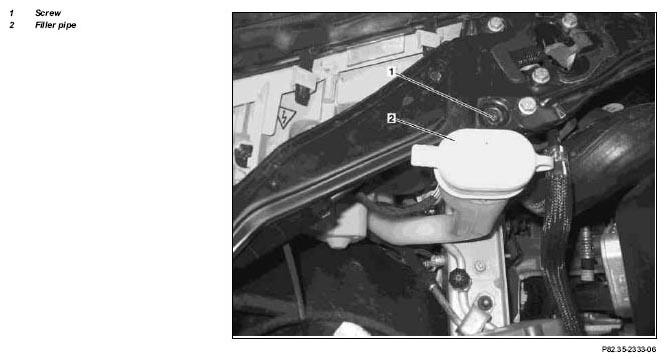

Fig 1: Identifying Filler Pipe Of Washer Fluid Reservoir Remove/Install Components

	Remove/Install
1	Open engine hood
2	Unscrew screws (1)
3	Detach filler pipe (2) from reservoir	Check rubber sealing ring, replace if necessary.
4	Install in the reverse order
	Check
5	Check windshield washer system fluid level and correct if necessary
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210P
6	Check for leaks	Carry out visual inspection.
