Remove/install cradle for portable CTEL telephone - AR82.70-P-8918PP

MODEL 203.0 /2 /7 with CODE (854) MB portable cellular telephone except CODE (352a) COMAND operating and display system

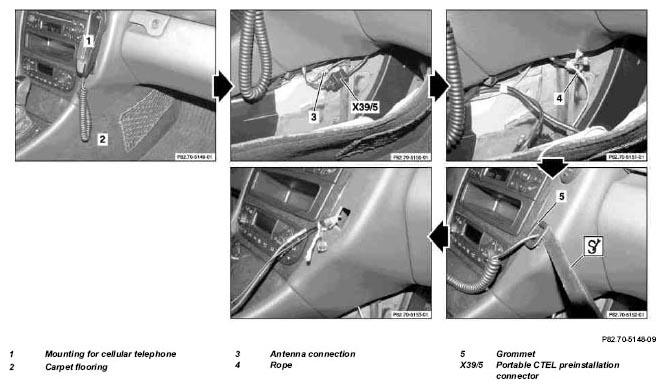

Fig 1: Identifying Cradle For Portable CTEL Telephone Remove/Install Components - Model 203.0 /2 /7 With Codes (854) And (352a)

	Remove/Install
1	Detach carpet flooring (2)	Detach until portable CTEL preinstallation connector (X39/5) and antenna connection (3) are accessible.
2	Disconnect portable CTEL preinstallation connector (X39/5)
3	Disconnect antenna connector (3)
4	Connect portable CTEL preinstallation connector (X39/5) to antenna connection (3)	Join using cord (4).
5	Lift off bracket for cell phone (1)
6	Remove grommet (5)		Figure
7	Pull portable CTEL preinstallation connector (X39/5) with antenna connection (3) out of paneling	Pull upward out of paneling. Installation:  Using cord (4) pull portable CTEL preinstallation connector (X39/5) and antenna connection (3) downward through paneling.
8	Install in the reverse order
9	Perform function check

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
