Remove/install cradle for portable CTEL telephone - AR82.70-P-8918P
MODEL 203.0 /2 /7 with CODE (854) MB portable cellular telephone with CODE (352a) COMAND operating and display system

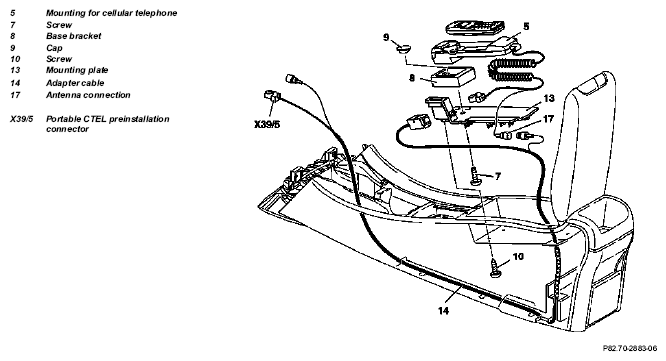

Fig 1: Identifying Cradle For Portable CTEL Telephone Remove/Install Components - Model 203.0 /2 /7 With Codes (854) And (352a)
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove bracket for cell phone (5) | ||
| 2 | Remove screws (10) | ||
| 3 | Lift off mounting plate (13) | ||
| 4 | Disconnect connector for adapter cable (14) from paneling (13) | ||
| 5 | Disconnect antenna connector (17) | ||
| 6 | Unscrew bolts (7). | ||
| 7 | Remove base holder (8) | ||
| 8 | Remove bracket for portable CTEL (5) | ||
| 9 | Install in the reverse order |
