Remove, install telescopic nozzle of headlamp cleaning system - AR82.15-P-6100P
MODEL 203 with CODE (600a) Headlamp cleaning system

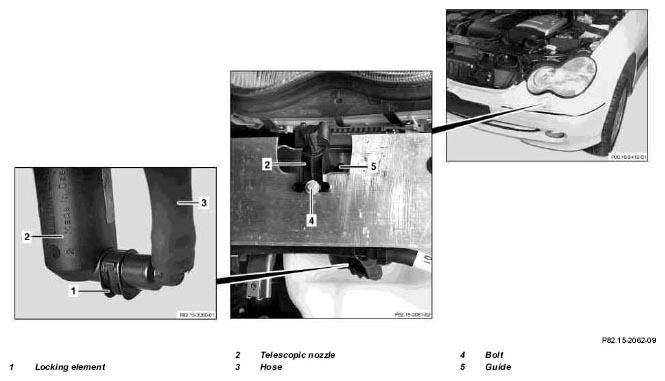

Shown on model 203.0
| Removing, installing | |||
|---|---|---|---|
| 1 | Remove front bumper | AR88.20-P-2000P | |
| 2 | Remove fuse (1) | ||
| 3 | Pull off hose (3) | ||
| Fig 2 | |||
| 4 | Unscrew screw (4) | ||
| 5 | Take out telescopic nozzle (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Function check | ||
| 8 | Inspect fluid level of windshield washer system, adjust to correct level | ||
| AP82.35-P-8210P | |||
| 9 | Check and correct headlamp adjustment | ||
| AP82.10-P-8260P |
