Remove, install blocking circuit of rear window antenna - AR82.62-P-7200P
MODEL 203
Shown on model 203.0

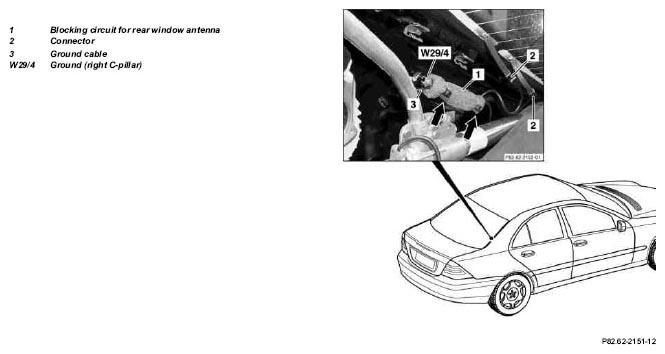

Fig 1: Identifying Blocking Circuit Of Rear Window Antenna Remove/Install Components - Shown On Model 203.0
MODIFICATION NOTES
| 23.10.00 | Remove top trim of tailgate added | Step 1.1 added |
| Removing, installing | |||
|---|---|---|---|
| 1.1 | Remove paneling on right C-pillar | Model 203.0 | AR68.30-P-4490P |
| 1.2 | Remove liner on tailgate | Model 203.2 | AR68.30-P-1050PA |
| 1.3 | Remove inner trim at tailgate window | Model 203.7 | AR68.30-P-1080PB |
| 2 | Disconnect connectors (2) | ||
| 3 | Disconnect ground cable (3) | ||
| 4 | Remove cable straps (arrows) | ||
| 5 | Take off blocking circuit for rear window antenna (1) | ||
| 6 | Install in the reverse order |
