Retrofitting plate on spring link - AN82.10-P-0003-02P

1. Screw plate (1) to spring link (2) with screws and nuts.
2. Screw ball pivots (3) to plate (1) with nut.
3. Press rod (4) onto ball pivots (3) with suitable tool.

Danger of breakage.

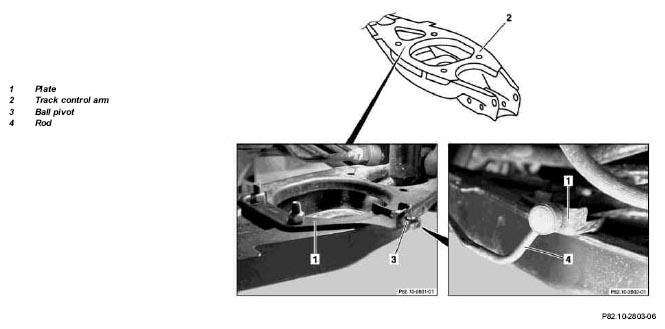

Fig 1: Identifying Plate, Track Control Arm, Ball Pivots And Rod
