Retrofitting optical waveguide wiring harness - AN82.70-P-0002-01QQ

Model 203.0 for fixed telephone installation with sound system

1. Prepare optical waveguide wiring harness (1) as shown in figure.

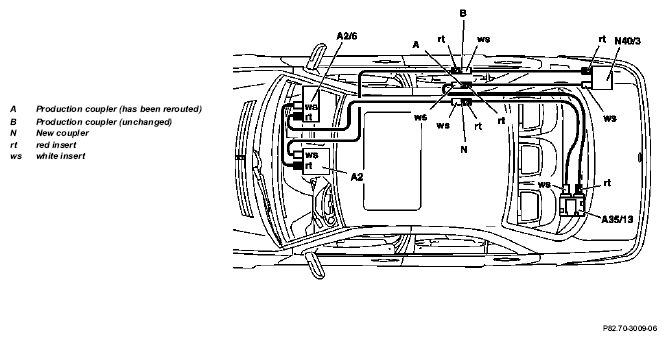

   Fig 1: Connection Schematic Diagram For Optical Waveguide Wiring Harness - Model 203.0 For Fixed Telephone Installation With Sound System


2. Route optical waveguide wiring harness (1) in vehicle as shown in figure.

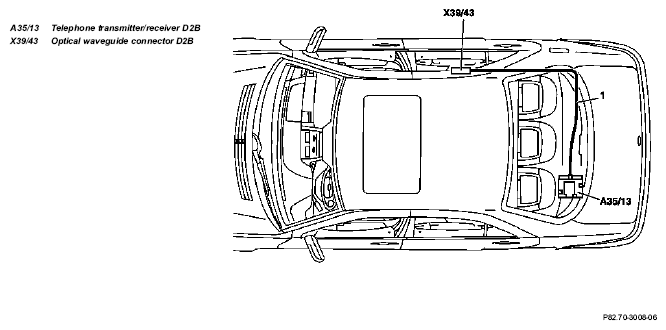

   Fig 2: Identifying Telephone Transmitter/Receiver D2B And Optical Waveguide Connector D2B


3. Check optical waveguide routing on right of trunk.

   In this case, only the amplifier for the sound system (N40/3) may be installed.

   Fig 3: Identifying Sound System Amplifier


4. Check optical waveguide routing in vehicle.

   The maximum station sequence is:

   • Radio (A2)
   • Amplifier for sound system (N40/3)
   • CD changer (A2/6) (if installed)
   • Radio (A2)

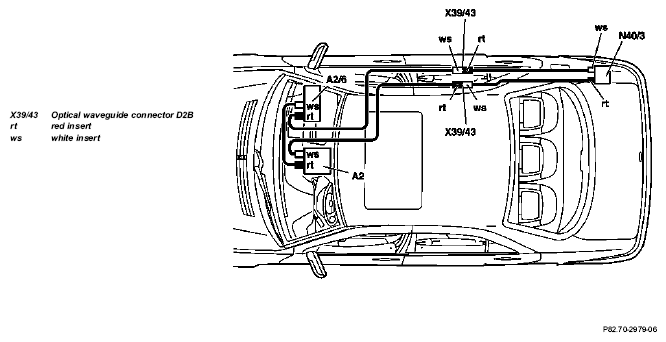

     Fig 4: Identifying Optical Waveguide Connector D2B And Red/White Insert


5. Expose the two optical waveguide connectors D2B (X39/43) in the area of the cable duct of the right rear door and check the routing direction.

   The optical waveguides routed to the front in the direction of motion lead to the radio (A2) or CD changer. The optical waveguides routed to the rear in the direction of motion to the trunk lead to the amplifier for the sound system (N40/3).

   Fig 5: Identifying Red And White Inserts


6. Check the optical waveguides leading to the front to the radio (A2) at couplers A and B.
7. Find the coupler (B) that has a red insert (rt) on the radio side (A2) (arrow) and lay aside (it is not altered).
   Fig 6: Identifying Coupler And Red Insert On The Radio Side


8. Remove the white insert (ws) originating from the radio out of the production coupler (A).
9. Insert the removed white insert (ws) into the new coupler (N) for the optical waveguide wiring harness (1) and close the coupler (N). Remove the green cover cap from the white insert (ws) of the optical waveguide wiring harness (1) and insert the white insert (ws) into the old coupler (A) and close the coupler.
   Fig 7: Identifying Optical Waveguide Connector D2B


10. The nominal configuration in the vehicle now is:
    • Radio (A2)
    • Amplifier for sound system (N40/3)
    • Telephone transmitter/receiver D2B (A35/13)
    • CD changer (A2/6) (if installed)
    • Radio (A2)
      Fig 8: Identifying Production Coupler, New Coupler, Red Insert And White Insert


11. Route optical waveguide wiring harness (1) through the rear panel into the trunk.
    Fig 9: Identifying Optical Waveguide Wiring Harness


12. Route branch-off line to telephone transmitter/receiver D2B (A35/13) from optical waveguide wiring harness (1) on the accessories plate as shown in figure and fasten with adhesive felt. Connect optical waveguide at telephone transmitter/receiver D2B (A35/13).
    Fig 10: Identifying Telephone Transmitter/Receiver D2B And Optical Waveguide Wiring Harness
