Retrofitting optical waveguide wiring harness - AN82.70-P-0002-01QA

Model 203.0 for fixed telephone installation for CD changer in glove compartment

1. Remove the optical waveguide routed during production between radio (A2) and CD player with changer (A2/6) (no longer needed).
   Fig 1: Identifying Radio And CD Player With Changer Wiring Harness - Model 203.0 For Fixed Telephone Installation For CD Changer In Glove Compartment


2. Prepare optical waveguide wiring harness (1) as shown in figure.

   Illustrated on Model 203 sedan with radio

   Fig 2: Optical Waveguide Wiring Harness Connection Diagram

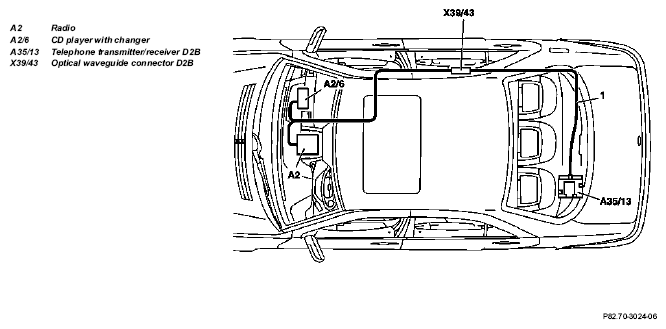

3. Route optical waveguide wiring harness (1) in vehicle as shown in figure.
   Fig 3: Identifying Optical Waveguide Wiring Harness Route


4. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) and CD player with changer (A2/6) in cable duct in front of passenger's seat as shown in figure and fasten with felt.
   Fig 4: Identifying Radio And CD Player With Changer Wiring Harness In Cable Duct In Front Of Passenger's Seat


5. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) and CD player with changer (A2/6) in instrument panel as shown in figure.
   Fig 5: Identifying Radio And CD Player With Changer Wiring Harness In Instrument Panel


6. Route branch-off lines to radio (A2) in radio recess.
   Fig 6: Identifying Wiring Harness For Optical Waveguide And D2B Terminal


7. Route optical waveguide wiring harness (1) in right cable duct toward rear
8. Insert the two optical waveguide connectors D2B (X39/43) in the cable duct for the right rear door as shown in figure.
   Fig 7: Identifying Optical Waveguide Connectors D2B In The Cable Duct For The Right Rear Door


9. Route optical waveguide wiring harness (1) over the right wheel housing along existing leads in the trunk.
   Fig 8: Identifying Optical Waveguide Wiring Harness Over The Right Wheel Housing


10. Route branch-off line from optical waveguide wiring harness (1) on the accessories plate to the telephone transmitter/receiver D2B (A35/13) along existing leads and fasten with felt.
    Fig 9: Identifying Telephone Transmitter/Receiver D2B
