Retrofitting optical waveguide wiring harness - AN82.70-P-0002-01Q

Model 203.0 for fixed telephone installation without CD changer and without sound system

1. Prepare optical waveguide wiring harness (1) as shown in figure.

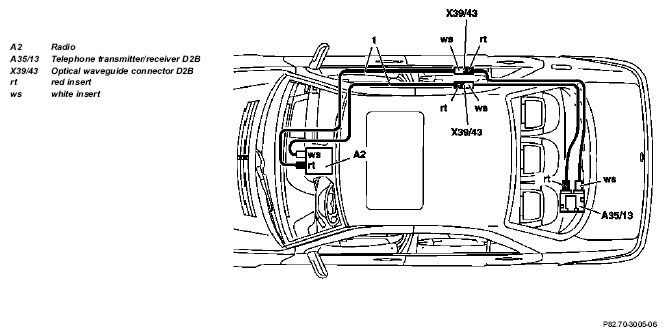

   Fig 1: Optical Waveguide Wiring Harness Connection Diagram - Model 203.0 For Fixed Telephone Installation Without CD Changer And Without Sound System


2. Route wiring harness (1) along existing leads in the vehicle as shown in figure.

   Illustrated on Model 203 sedan with radio

   Fig 2: Identifying Optical Waveguide Wiring Harness Route - Model 203 Sedan With Radio


3. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) in cable duct in front of passenger's seat as shown in figure and fasten with felt.
   Fig 3: Identifying Optical Waveguide Wiring Harness and Radio


4. Route branch-off lines to radio (A2) in radio recess.
   Fig 4: Identifying Wiring Harness For Optical Waveguide And D2B Terminal


5. Route optical waveguide wiring harness (1) in right cable duct toward rear
6. Insert the two optical waveguide connectors D2B (X39/43) in the cable duct for the right rear door as shown in figure.
   Fig 5: Identifying Optical Waveguide Connectors D2B


7. Route optical waveguide wiring harness (1) over the right wheel housing along existing leads in the trunk.
   Fig 6: Identifying Optical Waveguide Wiring Harness


8. Route optical waveguide wiring harness (1) on the accessories plate to the telephone transmitter/receiver D2B (A35/13), connect and fasten with felt.
   Fig 7: Identifying Telephone Transmitter/Receiver D2B
