Retrofitting optical waveguide wiring harness - AN82.70-P-0002-01PA

Model 203.0 with CD changer, without sound system

1. Remove the optical waveguide routed during production between radio (A2) and CD player with changer (A2/6) (no longer needed).
   Fig 1: Identifying CD Player With Changer Wiring Harness


2. Prepare optical waveguide wiring harness (1) as shown in figure.

   Illustrated on Model 203 sedan with radio

   Fig 2: Identifying Optical Waveguide Wiring Harness - Illustrated On Model 203 Sedan With Radio


3. Route optical waveguide wiring harness (1) in vehicle as shown in figure.

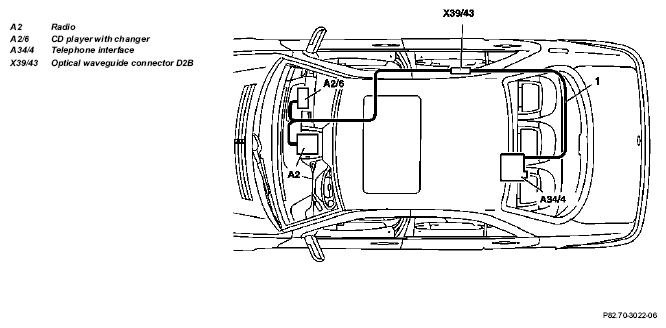

   Fig 3: Identifying Optical Waveguide Connector D2B And Telephone Interface


4. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) and CD player with changer (A2/6) in cable duct in front of passenger's seat as shown in figure and fasten with felt.
   Fig 4: Identifying Optical Waveguide Wiring Harness To Radio And CD Player With Changer


5. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) and CD player with changer (A2/6) in instrument panel as shown in figure.
   Fig 5: Identifying Optical Waveguide Wiring Harness


6. Route branch-off lines to radio (A2) in radio recess.
   Fig 6: Identifying Wiring Harness For Optical Waveguide


7. Route optical waveguide wiring harness (1) in right cable duct toward rear
8. Insert the two optical waveguide connectors D2B (X39/43) in the cable duct for the right rear door as shown in figure.
   Fig 7: Identifying Optical Waveguide Connectors And Wiring Harness


9. Route optical waveguide wiring harness (1) over the right wheel housing along existing leads in the trunk.
   Fig 8: Identifying Optical Waveguide Wiring Harness


10. Route branch-off line from optical waveguide wiring harness (1) to the telephone interface (A34/4) on the accessories plate along existing leads and fasten with felt.
    Fig 9: Identifying Optical Waveguide Wiring Harness To Telephone Interface
