Retrofitting optical waveguide wiring harness - AN82.70-P-0002-01AP

Model 203.0 without CD changer and without sound system

1. Prepare optical waveguide wiring harness (1) as shown in figure.

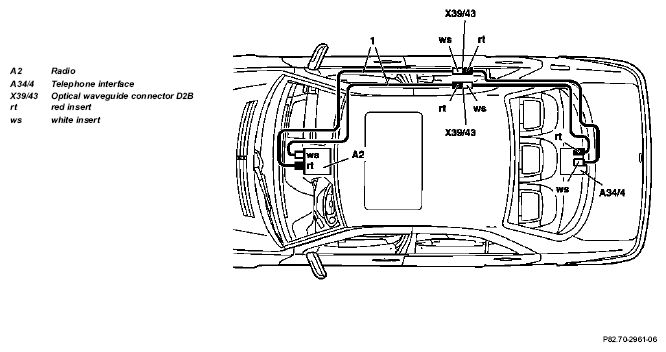

   Fig 1: Identifying Optical Waveguide Wiring Harness


2. Route wiring harness (1) along existing leads in the vehicle as shown in the figure.

   Illustrated on Model 203 sedan with radio

   Fig 2: Identifying Optical Waveguide Wiring Harness - Illustrated On Model 203 Sedan With Radio


3. Route branch-off line from optical waveguide wiring harness (1) to radio (A2) in cable duct in front of passenger's seat as shown in figure and fasten with felt.
   Fig 3: Identifying Branch-Off Line From Optical Waveguide Wiring Harness And Radio


4. Route branch-off lines to radio (A2) in radio recess.
   Fig 4: Identifying Wiring Harness For Optical Waveguide And D2B Terminal


5. Route optical waveguide wiring harness (1) in right cable duct toward rear.
6. Insert the two optical waveguide connectors D2B (X39/43) in the cable duct for the right rear door as shown in figure.
   Fig 5: Identifying Optical Waveguide Connectors


7. Route optical waveguide wiring harness (1) over the over the wheel housing along existing leads in the trunk.
   Fig 6: Identifying Optical Waveguide Wiring Harness


8. Route optical waveguide wiring harness (1) on the accessories plate to the telephone interface (A34/4), connect and fasten with felt.
   Fig 7: Identifying Optical Waveguide Wiring Harness
