Retrofitting headlamp range adjustment wiring harness - AN82.10-P-0002-03P

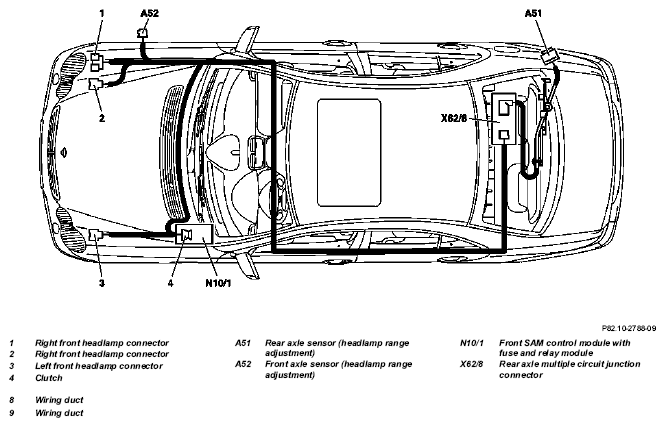

Fig 1: Identifying Headlamp Range Adjustment Wiring Harness
G04735926
Fig 2: Identifying Wiring Duct
G04735927
  1. Open wiring duct (8)

    IMPORTANT Wiring duct below battery console.

  2. Open wiring duct (9).
  3. Route wiring harness with connector (4) and connector on left front headlamp unit (3) below air conditioning pressure lines and master brake cylinder on firewall to front SAM control module with fuse and relay module (N10/1).
  4. Route wiring harness with connectors on right front headlamp unit (1, 2) and connector on front axle headlamp range adjustment sensor (A52) toward front through wiring ducts (8, 9) and connect to present wiring harness.

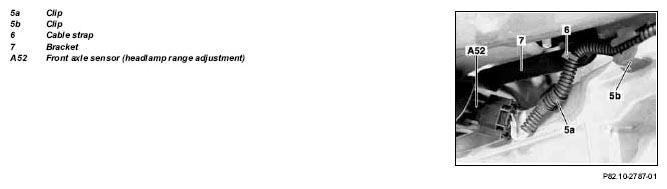

    Fig 3: Identifying Front Axle Sensor
    G04735928
  5. Fasten tie-out for front axle headlamp range adjustment sensor (A52) to longitudinal member with cable strap.
  6. Install clips (5a, 5b).
  7. Install connector on front axle headlamp range adjustment sensor (A52).
  8. Route tie-out.
  9. Fasten tie-out to mount (7) with cable strap (6).
  10. Insert connector (4) into plug location 24 (24) in front of SAM control module with fuse and relay module (N10/1).

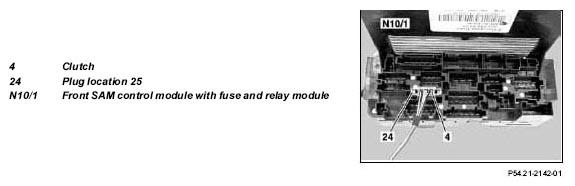

    Fig 4: Identifying Front SAM Control Module With Fuse And Relay Module
    G04735929
  11. Open wiring duct (15).
  12. Route tie-out with left front headlamp connector (3) toward front and connect to present wiring harness.
  13. Close all wiring ducts

    IMPORTANT With code (600a) Headlamp cleaning system.

    Fig 5: Identifying Wiring Duct
    G04735930

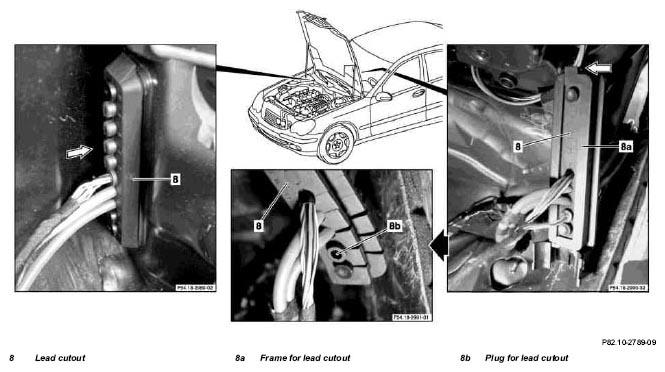

    Fig 6: Identifying Lead Cutout, Frame For Lead Cutout And Plug For Lead Cutout
    G04735931
  14. Press lead cutout (8) out toward passenger compartment.
  15. Open frame for lead cutout (8a) at top.
  16. Remove plug for lead cutout (8b).

    IMPORTANT Part eliminated.

  17. Pull tie-out with rear axle multiple junction connector (X62/8) into passenger compartment and insert in lead cutout.
  18. Install lead cutout (8).

    IMPORTANT Spray in lead cutout (8) with soap solution and insert first at top.

  19. Route tie-out with rear axle multiple junction connector (X62/8) in passenger footwell to right rocker panel wiring duct and connect to present wiring harness (arrows).
  20. Open wiring ducts in tunnel and left rocker panel.
  21. Route tie-out with rear axle multiple junction connector (X62/8) to left rear wheelhouse through wiring ducts of tunnel and left rocker panel.
  22. Close wiring ducts of tunnel and left rocker panel.
    Fig 7: Locating Wiring Harness
    G04735932

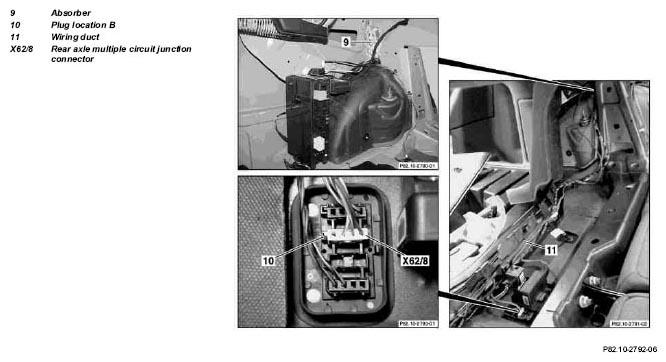

    Fig 8: Identifying Rear Axle Multiple Circuit Junction Connector
    G04735933
  23. Remove absorber (9).
  24. Open wiring duct (11).
  25. Route tie-out with rear axle multiple junction connector (X62/8) to rear axle multiple junction connector (X62/8) housing and connect to present wiring harness.
  26. Press seal out in plug location B (10) downward with suitable tool.
  27. Press in connector into plug location B (10).

    IMPORTANT Connector should catch audibly.

  28. Close wiring duct (11).
  29. Install absorber (9).
