Retrofit illuminated door sill molding - AZ82.20-P-0001PC
MODELS 203.7

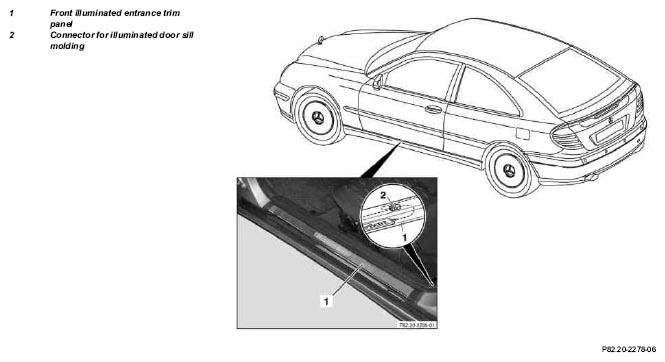

Fig 1: Identifying Front Illuminated Entrance Trim Panel And Illuminated Door Sill Molding Connector - Models 203.7
| Remove | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not perform any work on such components. | AS00.00-Z-0020-01A | |
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 |
Disconnect ground cable of battery | AR54.10-P-0003P | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove paneling in trunk | ||
| AR68.30-P-4600PB | |||
| 4 | Remove rear SAM control unit with fuse and relay module | ||
| 5 | Remove side cushion on left rear seat backrest | ||
| 6 | Fold left and right rear seat cushion up | ||
| 7 | Remove right and left rear side paneling | ||
| 8 | Remove inner and outer left and right front sill moldings | ||
| 9 | Remove right front and left rubber door seal in area of B-pillar | ||
| Install | |||
| 10 | Retrofit illuminated entrance trim panel (1) | AZ82.20-P-0001-01PC | |
| 11 | Route cable harness for illuminated entrance trim panel | AZ82.20-P-0001-02PC | |
| 12 | Perform function check | ||
| 13 | Install remaining parts onto vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 689 00 64 | Illuminated entrance trim panels with cable harness | 1 |
| B6 689 00 16 | Lighting film, blue | 1 |
| B6 689 00 17 | Lighting film, green | 1 |
| B6 689 00 18 | Lighting film, yellow | 1 |
| A210 545 40 28 | 1-pin housing | 1 |
| A003 545 51 26 | Contact spring | 1 |
