Retrofit i-Pod interface - AZ82.60-P-0001-03Q

Wind self-adhesive felt tape (21) around i-Pod interface (3) on the side with the connection jack for i-Pod wiring harness (see arrow) as shown in figure.
Attach velcro strip (22) to i-Pod interface (3) as shown in figure.
Adhesion surfaces must be clean, dry and free of grease.

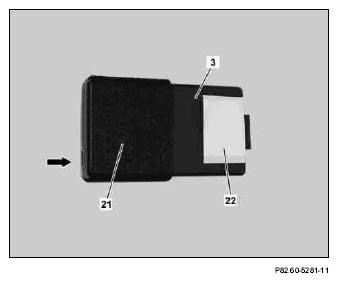

Fig 1: Identifying Self-Adhesive Felt Tape, Velcro Strip And I-Pod Interface
Connect connector (5) of i-Pod wiring harness (1) and connector (7) of interface wiring harness (8) to the i-Pod interface (3).
The connections are mechanically coded to prevent connecting incorrectly.
Position i-Pod interface (3) between AC housing and A-pillar and secure to the A-pillar using velcro strip (22) as shown in figure.
Adhesion surfaces must be clean, dry and free of grease. If required, fasten i-Pod interface (3) additionally using self-adhesive felt tape.

Shown on model 209.3

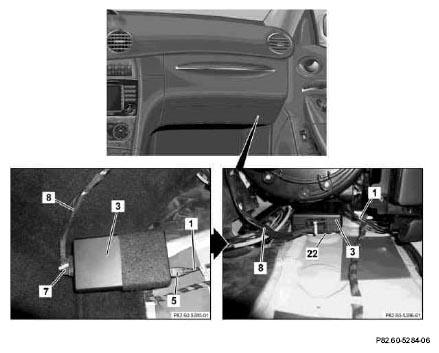

Fig 2: Identifying I-Pod Wiring Harness Connector, Interface Wiring Harness Connector And i-Pod Interface - Shown On Model 209.3
