Retrofit antenna - AN82.62-P-0001-02P

Model 203.0

ANTENNA

Number	Designation		Model 203.0
BA82.62-P-1001-01A	Bolt/nut of antenna base to vehicle roof	Nm	3

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-02A	Anti-rattle tape	Kent Industries Deutschland
	Art. no. 34722	Am Nordkanal 8 47877 Willich Germany Tel. +49 2154 9567-0 Fax +49 8001885 140 www.kenteurope.com

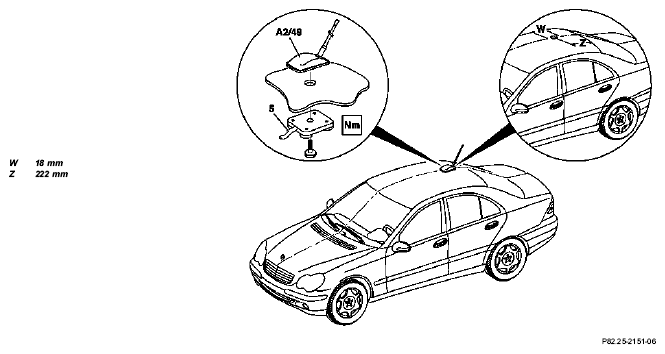

Fig 1: Identifying Antenna Wire, Antenna And Two Way Radio - Model 203.0

Drill hole for attachment of antenna as per the accompanying drawing.
Deburr hole and restore corrosion protection, see paintwork manual (LHB).
Screw antenna base with HF line (5) through the hole to antenna splitter.
Ensure proper ground connection between antenna and body.

Fig 2: Identifying GPS Antenna
Clean area of bonding surface at roof paneling.
The bonding surface must be completely free of grease.
Wind anti-rattle tape (self-adhesive felt tape) around HF line (5) in roof area and fasten to roof paneling using adhesive strip.
Be very careful when fastening the wiring harness to prevent rattling noise.

Fig 3: Identifying HF Line At Roof Paneling
Route HF line along C-pillar, beyond the reach of the windowbag, to the frame floor system.
The function of the windowbag unit may not be impaired under any circumstances.

Fasten HF line on existing wiring harnesses to the extent possible.
Route HF line (5) in frame floor system to radio installation opening.

Fig 4: Identifying HF Line At C-Pillar
