Reconnecting headlamp range adjustment pneumatic line - AN82.10-P-0003-03PB

  1. Close gray pneumatic line (4a) with plug (6) on pneumatic connector (5a).

IMPORTANT Do not connect violet pneumatic line (2a). Connector (3a) remains open in vehicle.

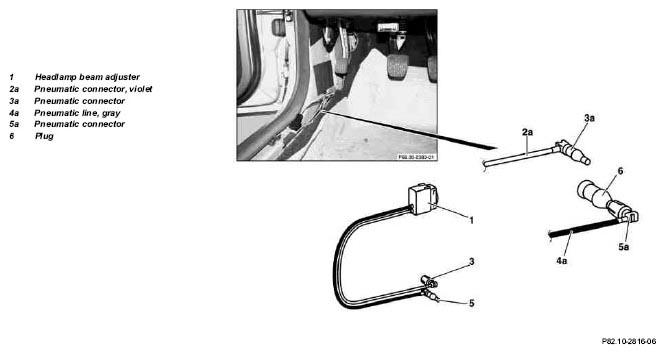

Fig 1: Identifying Headlamp Range Adjustment Pneumatic Line Components
G04735938
