Reconnecting headlamp range adjustment pneumatic line - AN82.10-P-0003-03PA

1. Connect pneumatic lines, gray (4a, 4b) with connectors (6a, 6b).

Do not connect violet pneumatic line (2a). Connector (3a) remains open in vehicle.

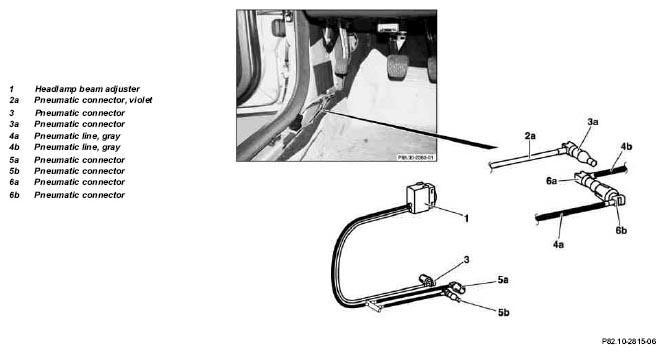

Fig 1: Identifying Headlamp Range Adjustment Pneumatic Line Components
